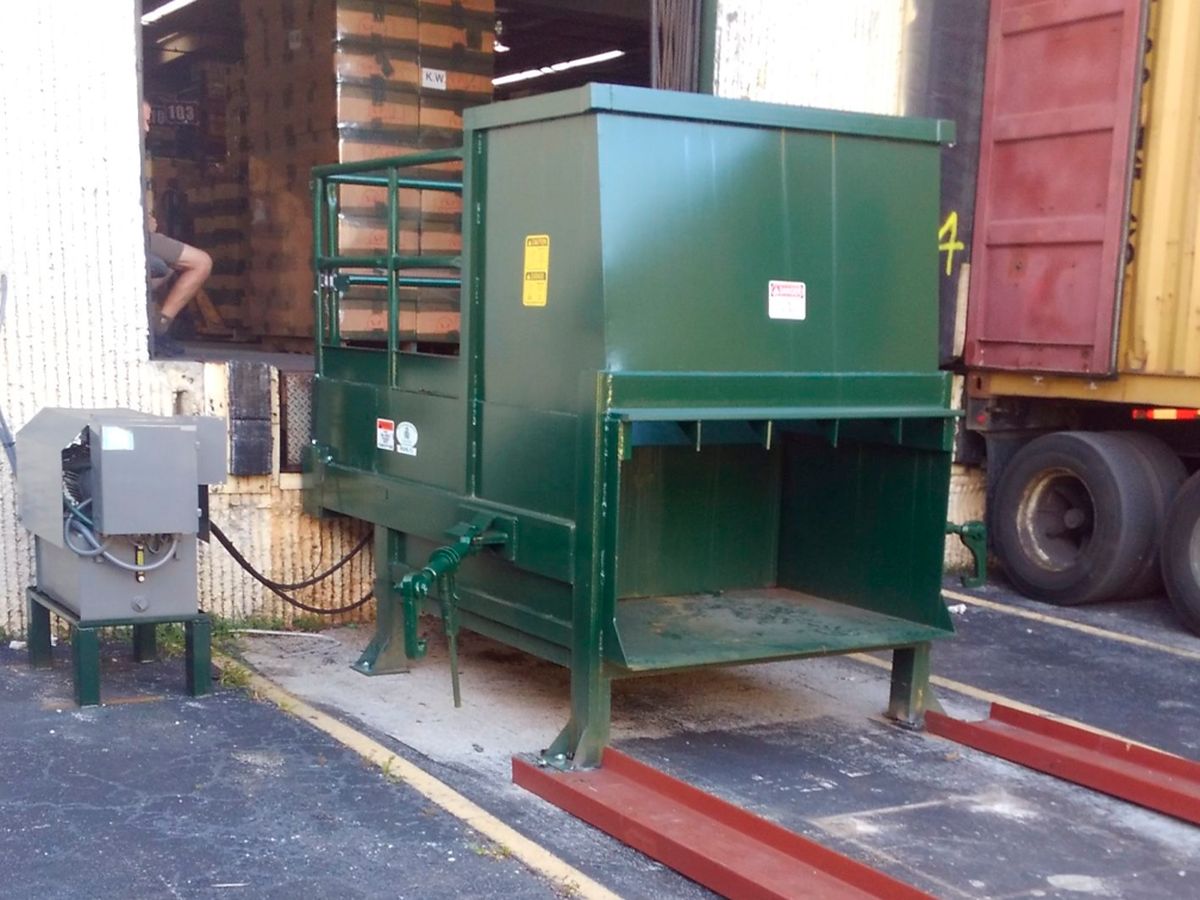

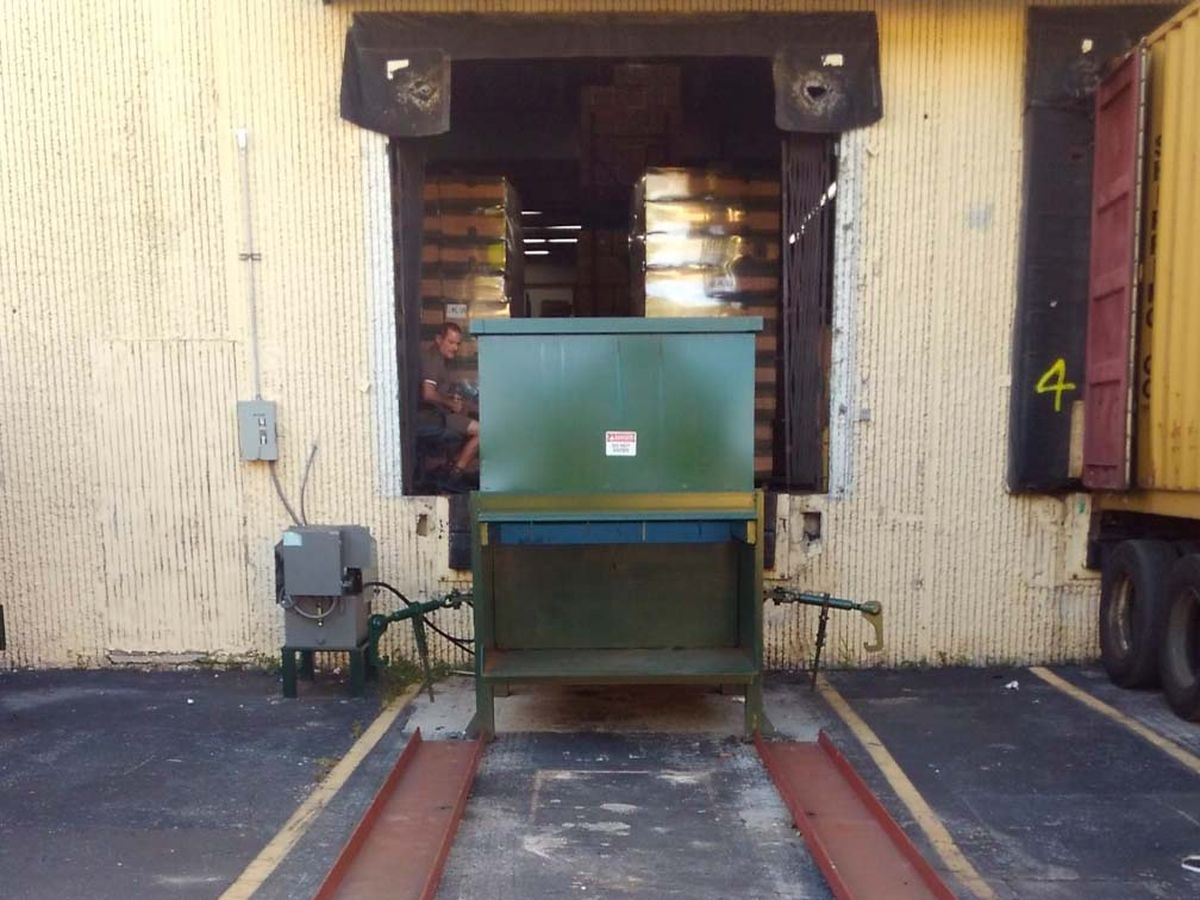

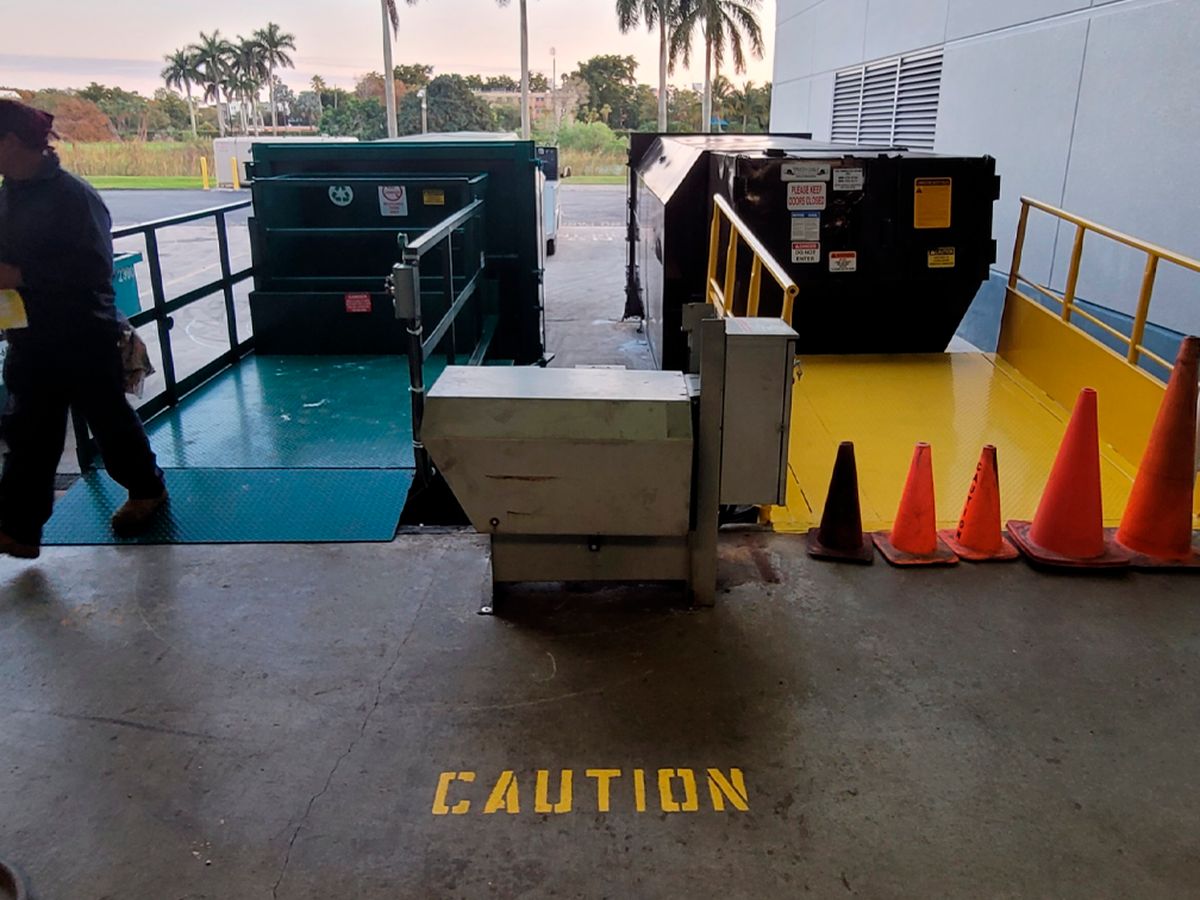

Stationary compactor

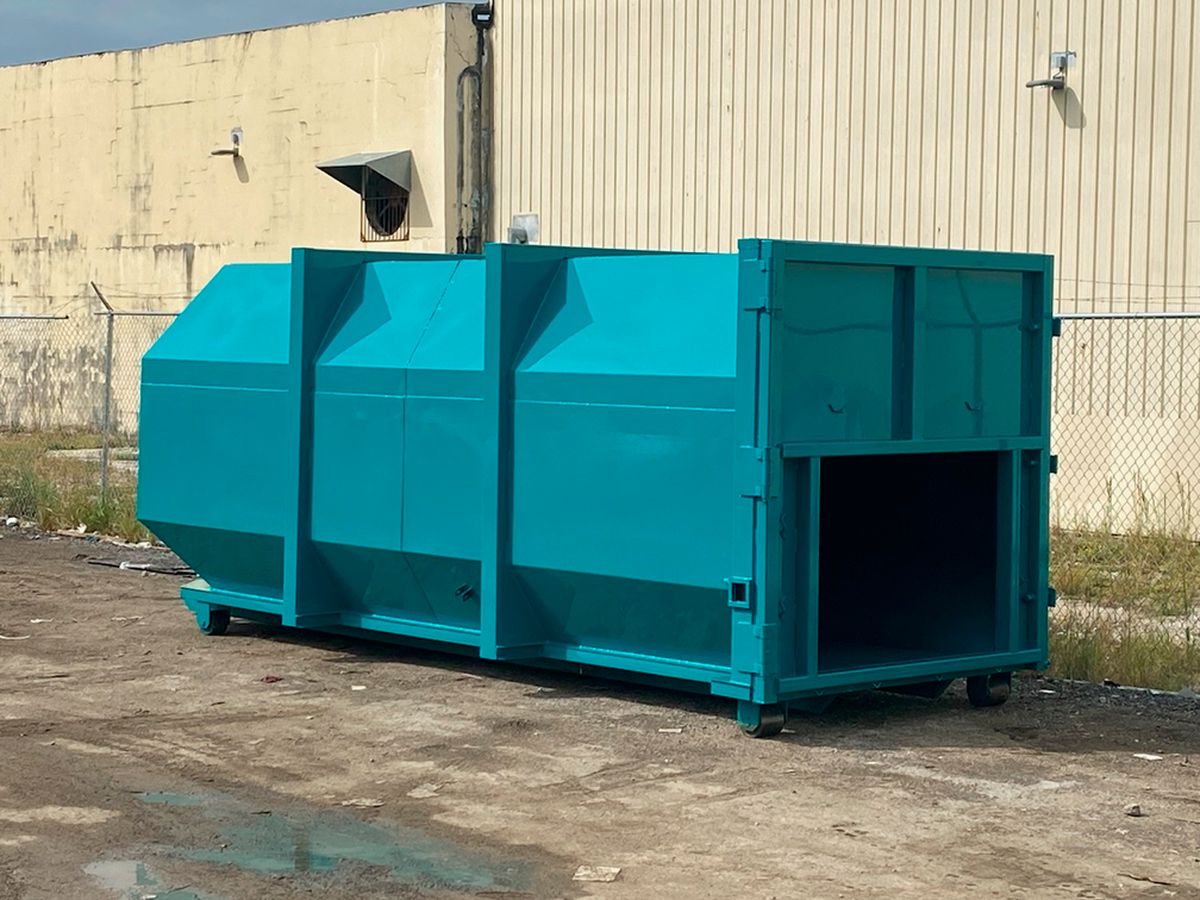

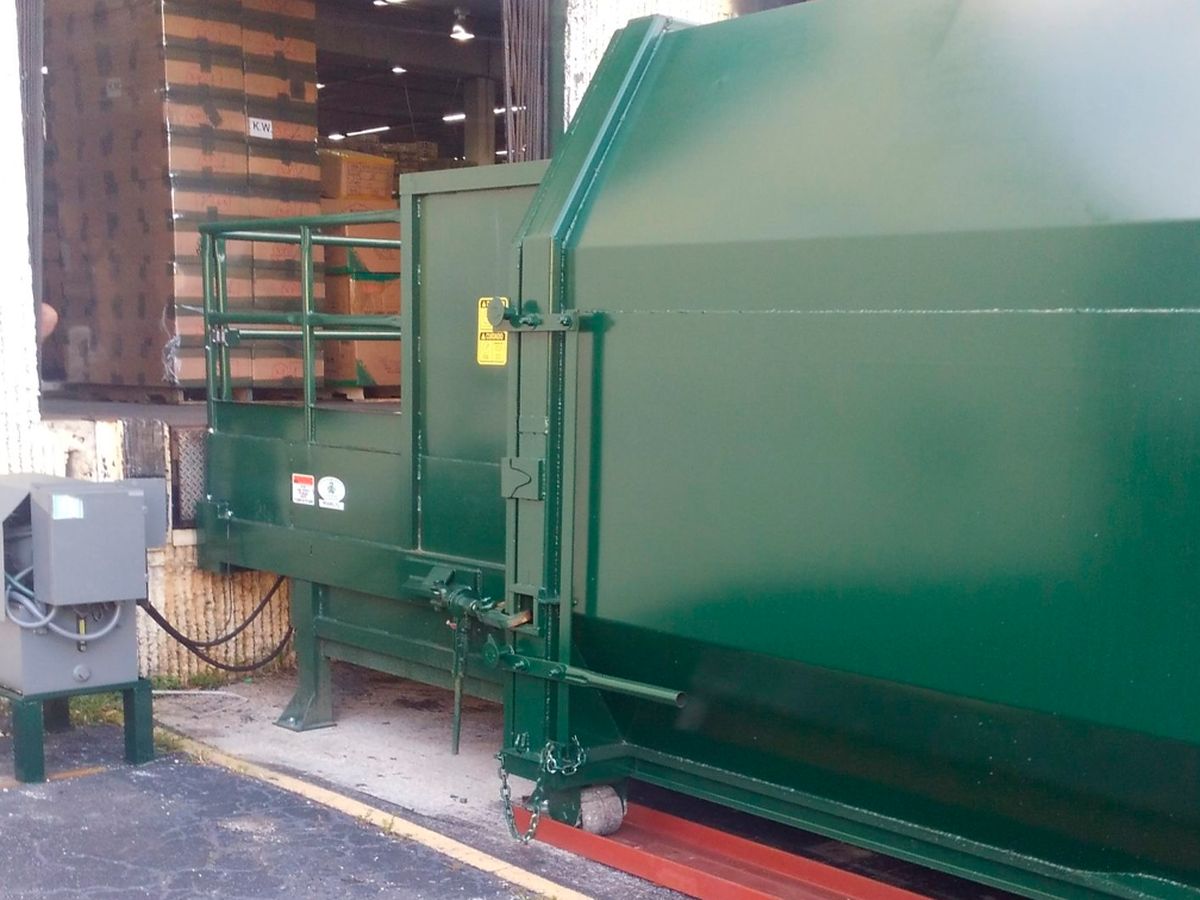

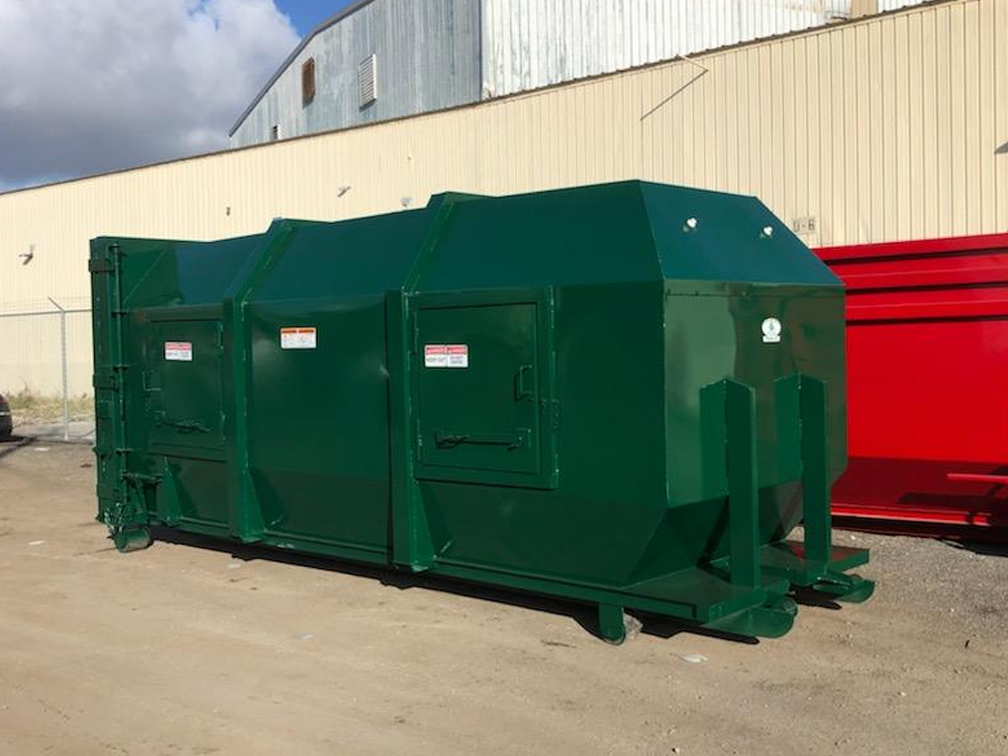

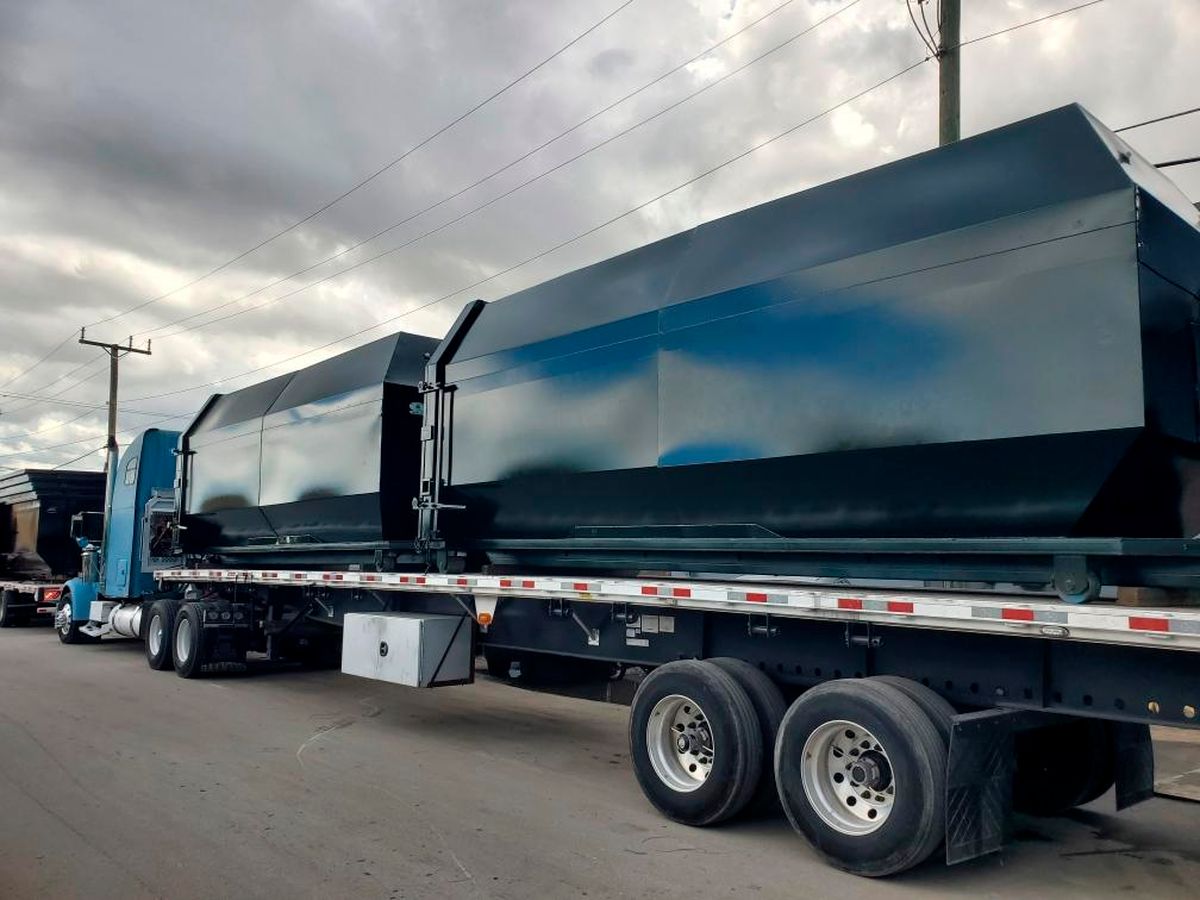

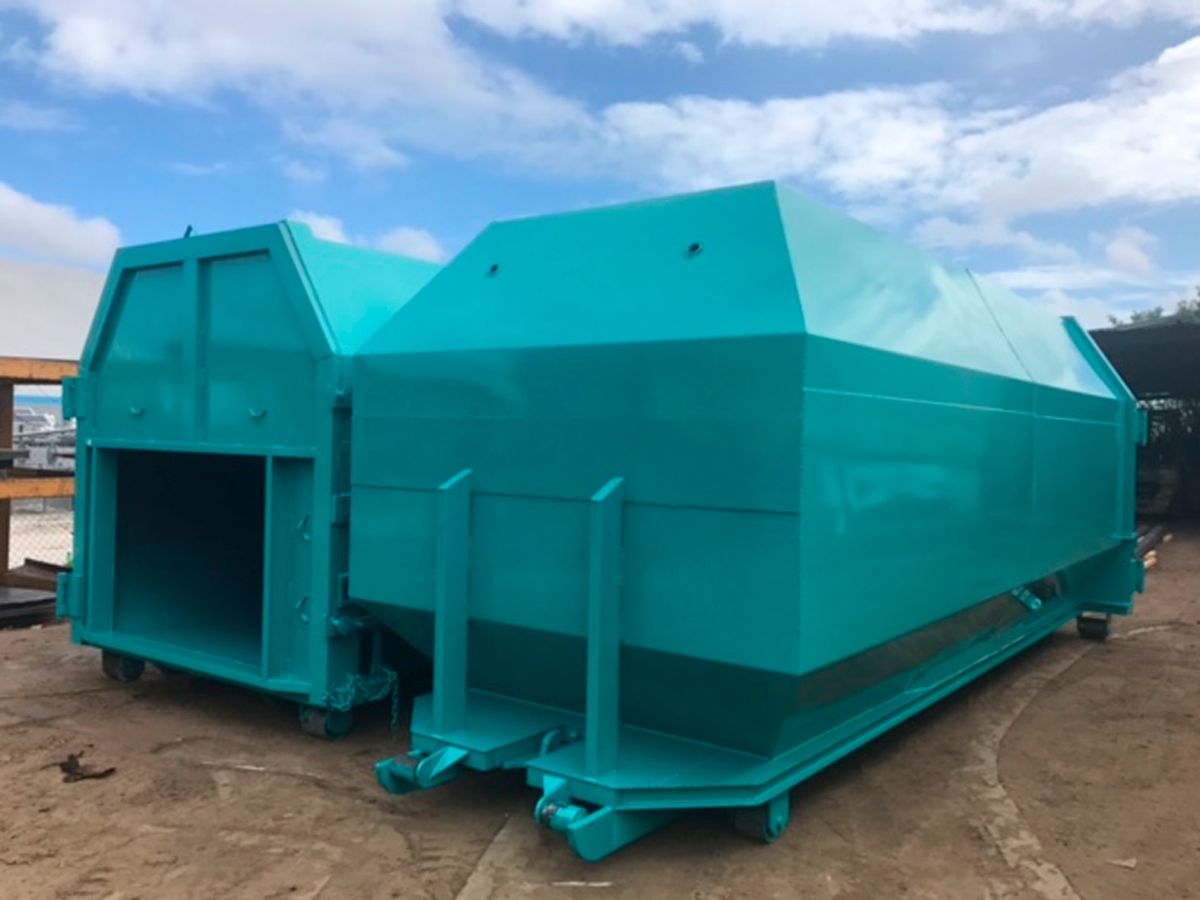

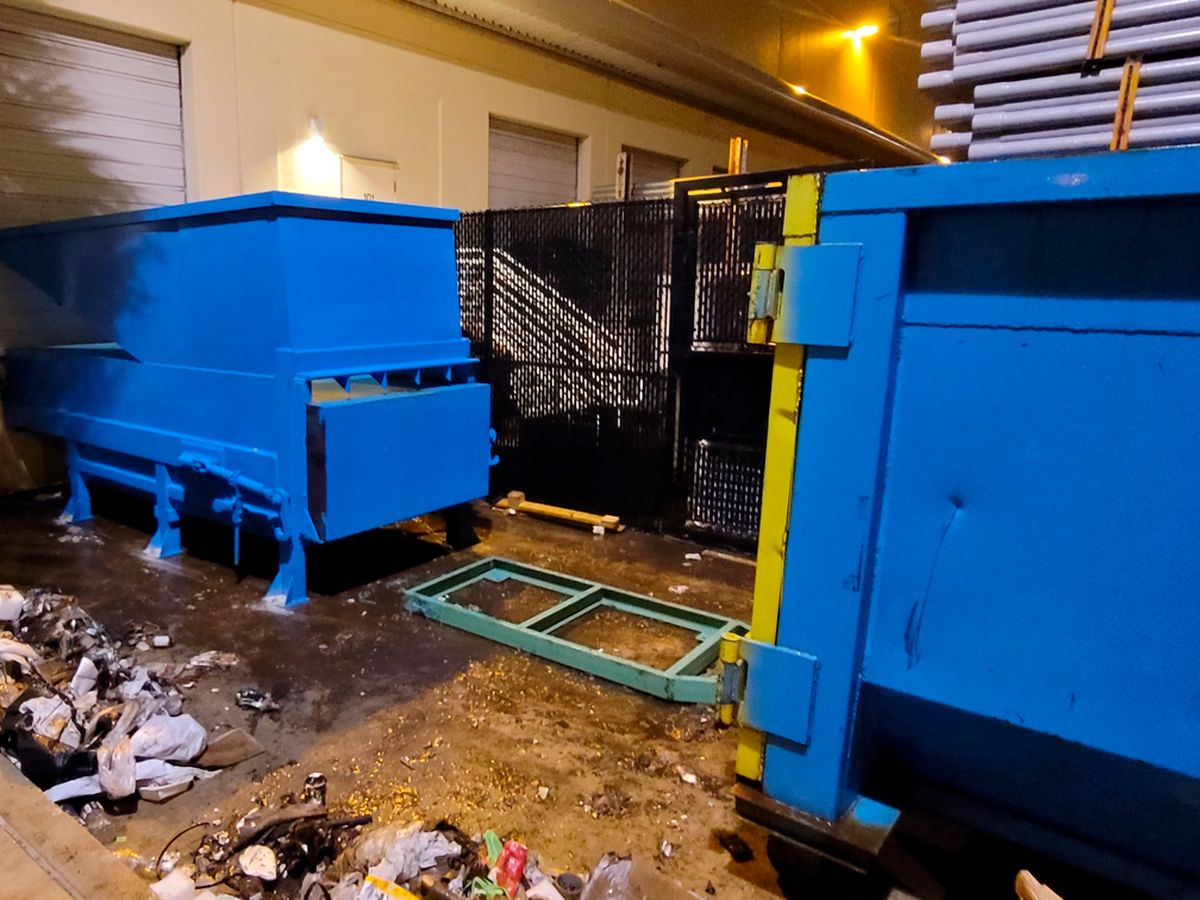

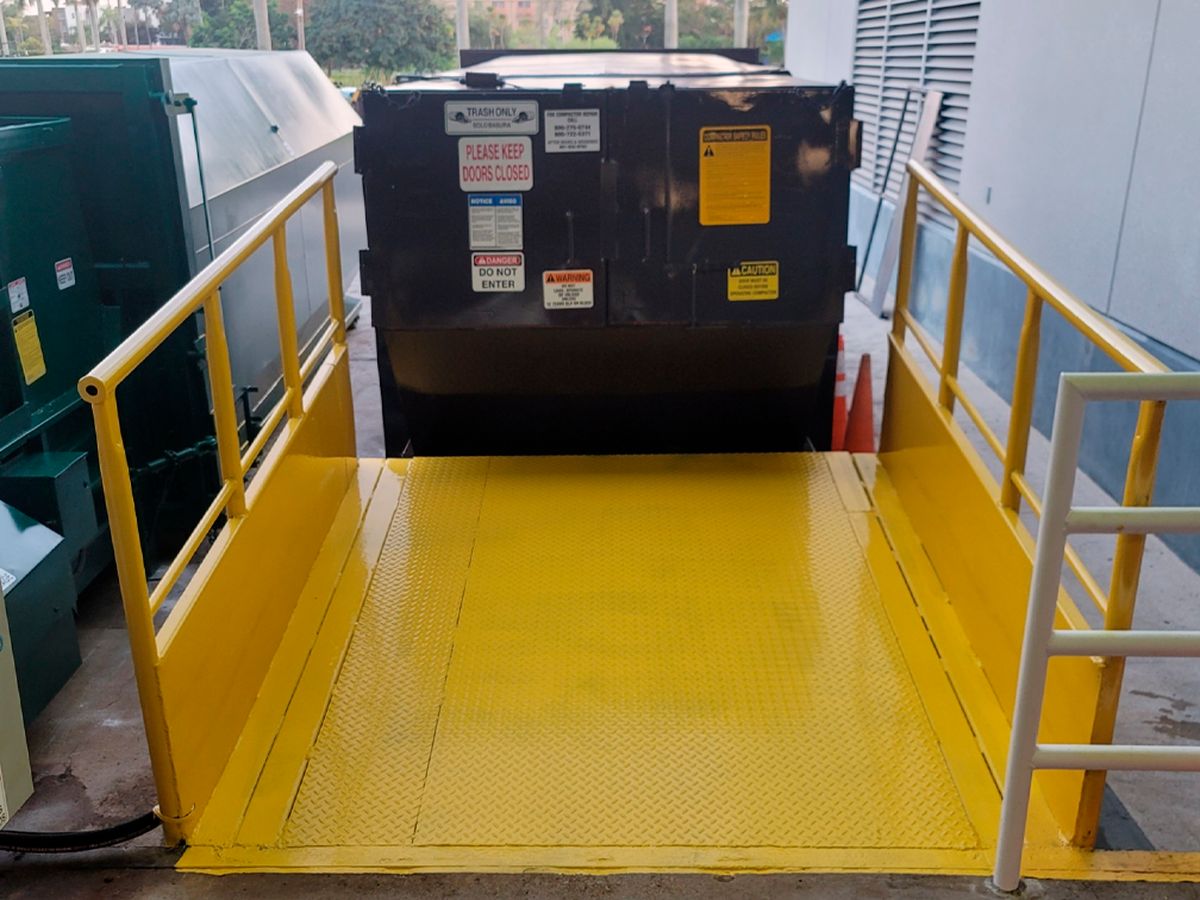

Stationary compactors and rolloff compaction containers
Recommended container opening:
-
Height 44′ min
-
Width: 63″ min, 68”max
The specification sizes/measurements in this document are not complete or definitive and are subject to change without notice, all drawings and information contained herein are intellectual and exclusive properties of IES Sales and Services LLC.
Description
- Manufacturer Rating:2.45 cubic yard
- Vol. Displacement per Hr:129 cu. yards
- Hopper-Clear Top Opening:56″x42″
- Hopper Depth:36-1/4″
- Overall Length:141″
- Overall Height:63-1/8″
- Overall Width:81-1/4″
- Ram Face Size:30″ x 59-1/8″
- Ram Penetration:12″
- Normal Ram Force:56,548 lbs.
- Maximum Ram Force:65,030 lbs.
- Normal Ram Face Pressure:32psi
- Maximum Ram Face Pressure:37psi
- System Pressures:Normal 2000psi / Max. 2300psi
- Cycle Time:64 sec
- Cylinder:6″ Bore x 60″ Stroke w/ 3″chrome shaft
- Floor:3/8″ plate
- Ram Face:3/8″ plate
- Top Cover:12 gauge
- Ram Guide System:Abrasive Resistant Steel
Power Pack Unit
- Pump:12 GPM @ 1800 RPM
- Reservoir:22 Gal.
- Valve:Solenoid
- Pressure Relief Valve:Standard
- Full /Jam Light:Standard
- Oil Sight Gauge:Standard
- Remote Power Unit:Key Operated, Standard
- Controls:Push Button
- Cycle Control:Limit Switches
- Electric Motor:208,230,460 (3 phase)
- Motor:High Torque Hyd. 10 HP TEFC
- Power Unit Weight:535 lbs. Approx.
- Compactor Weight:4600 lbs. Approx.
