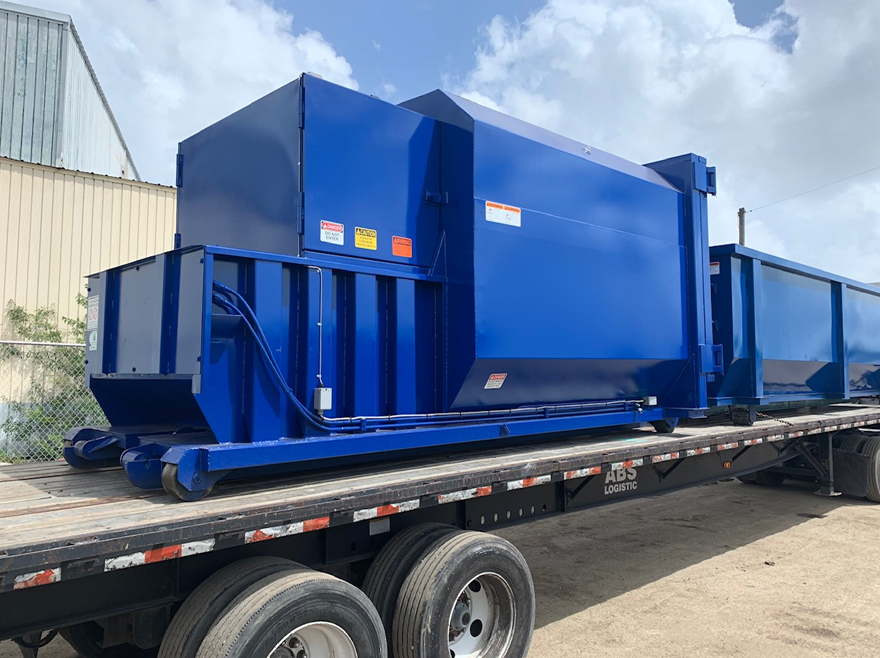

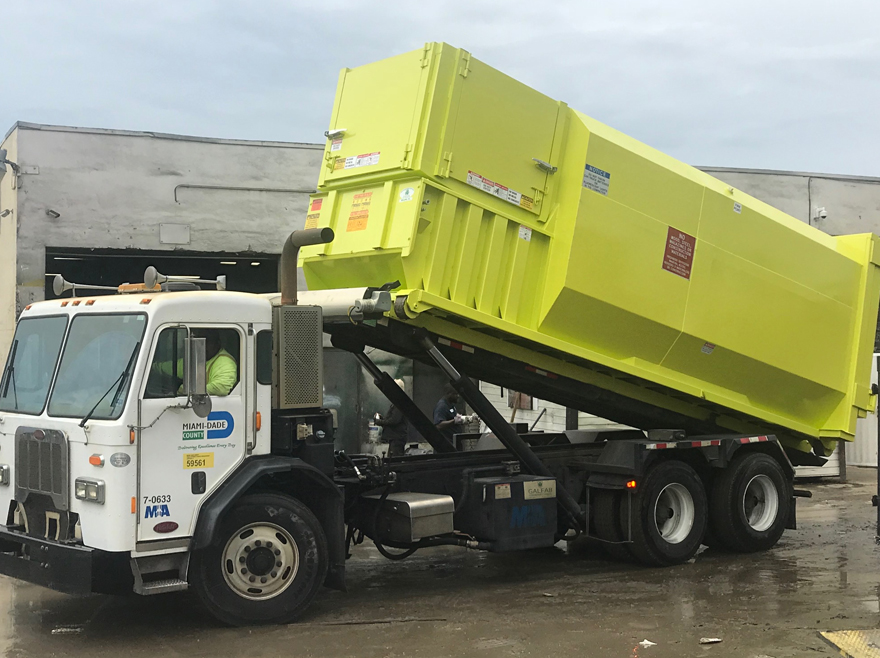

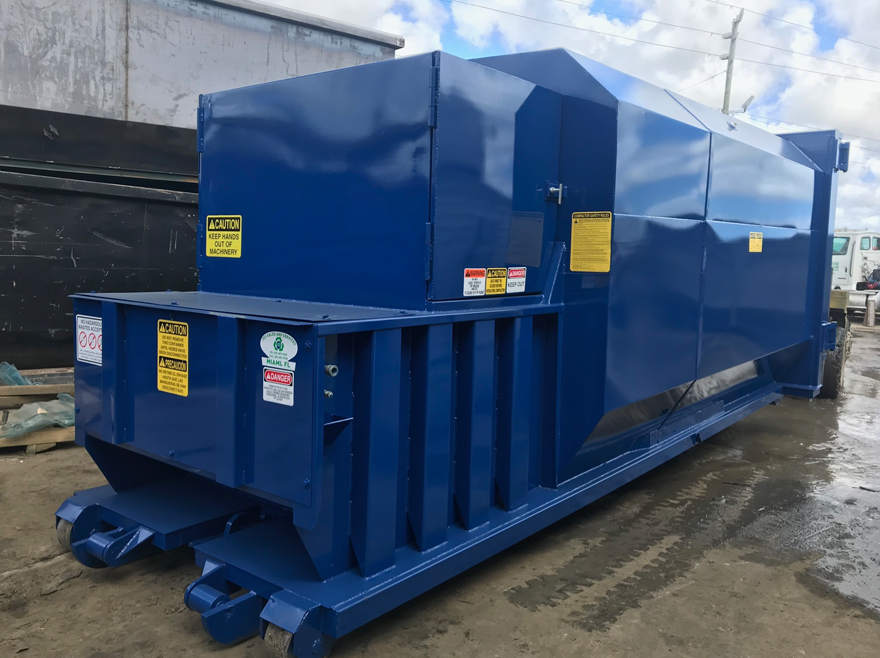

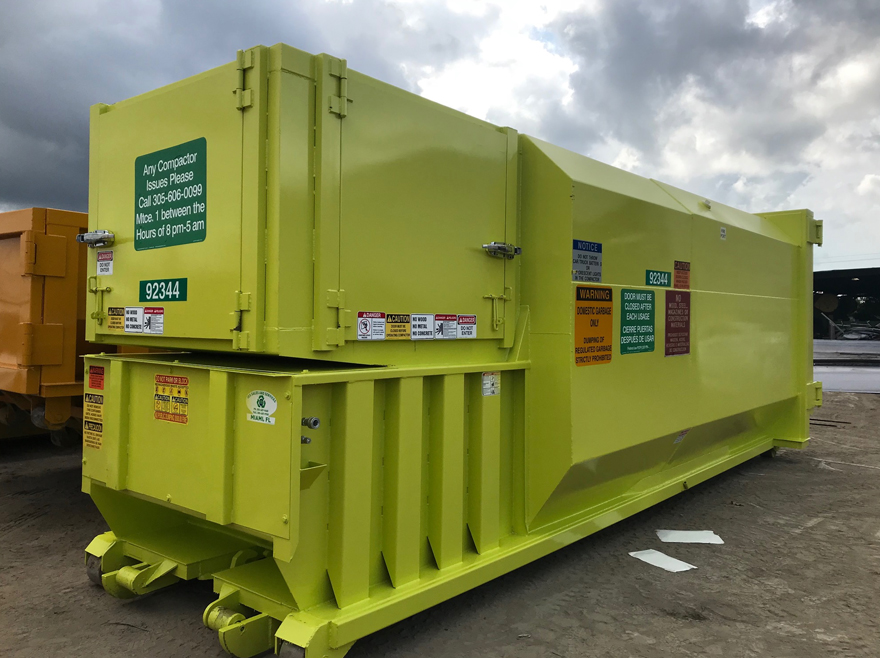

1-Pak Self Contained Compactors

Features:

Easy loading from either ground or dock level
Excellent crushing force to reduce refuse to a fraction of its former size.
Easy and fast installation.
Continuous feeding capablity; even while in use.
Adaptable to special loading systems such as large. capacity hoppers, security chutes or total enclosures.
Fire hose connection with each unit.
Factory tested to assure leakproof design. -UL / ETL Listed
IES 2 year Warranty (Structure)
1 year (Components)
6 Months (Labor)

Specifications

Charge Box Capacity

[Mfrs. Rating] – 1.9 cu. yd.
Clear Top Opening – 40″L x 57-1/2″

 Download Brochure

 Request a Quote

Description

Performance Characteristics Cycle Time – 33 s

Total Normal Force – 39,900 lbs.Total Maximum Force – 49,000 lbs. Normal Ram Face Pressure – 22.9 psi Maximum Ram Face Pressure – 23 psi Ram Penetration – 6″

Electrical Equipment

Electric Motor 3/60/230-460 – 10 hp
Electric Control Voltage – 120 VAC
Panel Box Assembly – UL/ETL rated – Key Operated All Circuits Fused – 3 Push Button Station Start/Stop/Reverse

Hydraulic Equiptment

Hydraulic Pump – 10 gpm
Normal Pressure – 1850 psi
Maximum Pressure – 2300 psi
Hydraulic Cylinders (2) – Bore – 4″ – Rod – 2 – 1/2″

CAP C/Y	A	B	C	D	E	Approx Weight
15	4’3-1/2″	3′ 6″	5′ 7″	14′ 8″	8′ 8″	9,000Ibs.
20	4’3-1/2″	3’6″	5’7″	17′ 1″	8’8″	9,700Ibs.
25	4’3-1/2″	3′ 6″	5′ 7″	19′ 7″	8′ 8″	10,200Ibs.
30	4’3-1/2″	3′ 6″	5′ 7″	22′	8′ 8″	10,600Ibs.
34	4’3-1/2″	3′ 6″	5′ 7″	22′ 11″	8′ 8″	11,100Ibs.

ALL COMPONENTS ON THE I-PAK SERIES ARE SELECTED FOR LONGEVITY AND LOW MAINTENANCE WITH SPECIAL ATTENTION TO ALL SENSITIVE COMPONENTS.

IES ENGINEERED THE I-PAK WITH EXTRAORDINARY STRUCTURAL RIGIDITY AND CONSTRUCTS THESE UNITS UNDER STRINGENT QUALITY CONTROL IN ORDER TO OFFER THE USER A TRULY FANTASTIC PRODUCT.I-PAK UNITS PROVIDE TOP NOTCH FUNCTIONALITY FOR STORING AND TRANSPORTING WASTE WHILE PREVENTING CONTAMINATION OF YOUR WORK AND PUBLIC AREAS IN ACCORDANCE WITH PUBLIC HEALTH DEPARTMENT REGULATIONS.

IN RETURN, YOU WILL HAVE IMPROVED WORK CONDITIONS AND REDUCED DISPOSAL COSTS. THE I-PAK SERIES IS EQUIPPED WITH STANDARD DOUBLE ENDED PICK-UPS AND CAN ALSO BE CUSTOMIZED WITH A VARIETY OF LOADING ARRANGEMENTS TO COMPLY WITH YOUR SPECIFIC NEEDS
